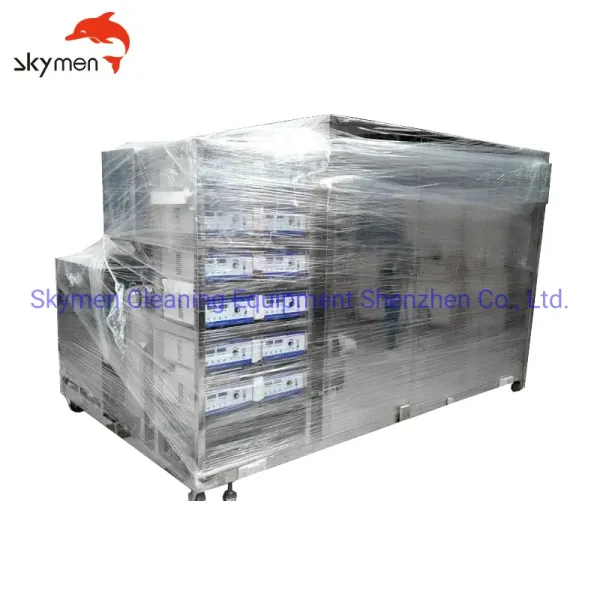

Industrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz Frequency

Skymen Technology Corporation Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Industrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz Frequency

  • 1
  • 2
  • 3

Certification : CE, RoHS, FCC

MOQ : 1

Price : 28000

Model NO. : JP-1936ST

Frequency : 40kHz/28kHz

Power : 0-46.8kw

Heating Power : 66kw

Net Weight : 4000kg

Gross Weight : 4300kg

Capacity : 7280L / 2000 Gallon

Tank Size : 3.5*1.6*1.3m

Unit Size : 390*200*200cm

Package Size : 400*210*210cm

Material : Stainless Steel SUS304

Ultrasonic Power : 46800W

Temperature Setting : Room temperature ~ 95°C adjustable

Basket Load : 2000KG

Power Supply : 380V 3 phase; 220V 3 phase; 415V; 600V

Contact Now

Industrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz FrequencyProduct Description

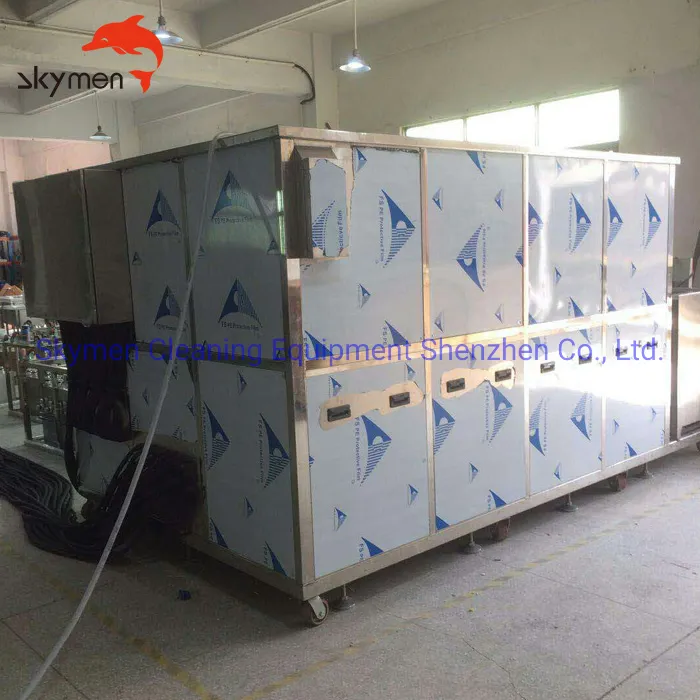

Ultrasonic Cleaner Washing Equipment for Turbine Condenser Tube Cleaning Remove Dirty Rust

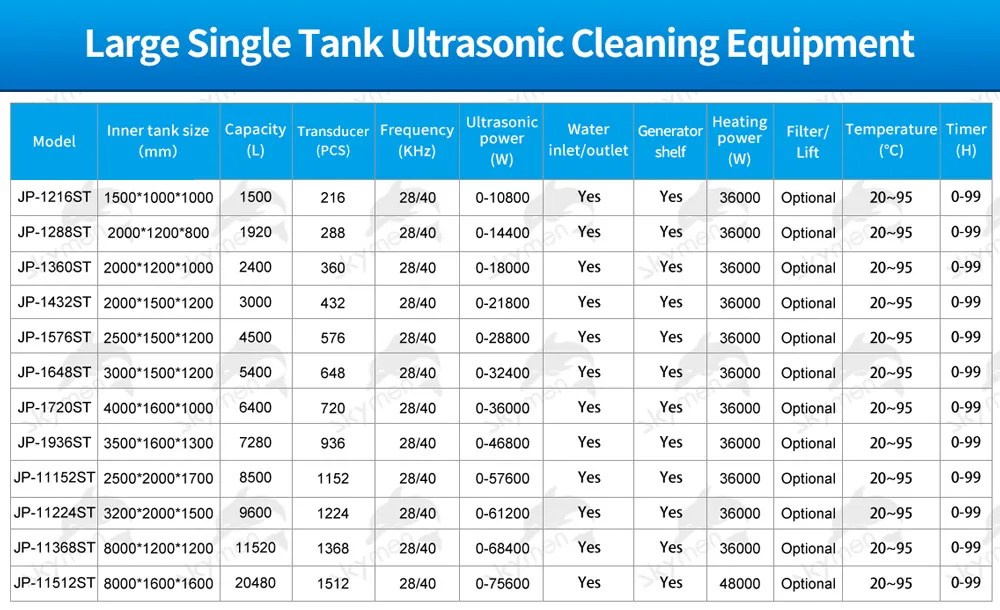

Detailed Specification of this machine:

1
Model
JP-1923ST
2
Parameter

Function
Ultrasonic cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized)
Tank Material
SUS 304 (SUS 316 can be customized)
Thickness of tank 3mm
Inner tank dimension
3500*1600*1300mm
Tank Capacity
7280L
Transducer
936pcs
Ultrasonic Power
46800W
Heating Power
66000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C adjustable
Drain value
Available
Water inlet/outlet
Available
Generator
26 sets
Generator power control 1800W
Generator shelf Available
Basket Available
Basket load
2000KG
3
Packing
Overall size
390*200*200cm
Packing size
400*210*210cm
Packing detail By wooden case(No logs, free of fumigation)
N.W/G.W
4000KG/4300KG
4 Power supply 380V 3 phase; 220V 3 pahse; 415V; 600V
5
Warranty
1 year warranty for spare parts, all life technical support
6
Certificate
CE, RoHS; FCC, REACH
7
Lead time
20~30 working days after deposit
7 Optional functions Filtration cycle system Available; capture dirty water, recycle clean water
Lifting system for basket Available; take the basket up and down
Dunking system Available; Speed up cleaning
Bubbling Available; need to connect air compressor
Electrolysis Available; For cleaning more complex structure mold
Cooling system Available; To cool down inflammable and explosive
Constant temperature Available;
Roller barrel Available; for clean coins and big quantity parts
Anti-explosion electric box Available;
Deionized(DI) water Available
Double/Multi frequency Available; 28/40/20/68/80/132KHz
Other funtions Negotiate via email
Industrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz FrequencyIndustrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz Frequency

Industrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz FrequencyIndustrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz FrequencyIndustrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz FrequencyIndustrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz FrequencyIndustrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz Frequency



Packing & Delivery

Industrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz Frequency
Parts that are cleaned of large amounts of dirt are generally pre-cleaned by dipping, spraying, etc. After removing most of the dirt, the remaining dirt is ultrasonically cleaned, and the effect is good. If you clean small items and complicated shapes (parts), if you use a cleaning net or rotate the cleaning object, you can use ultrasonic radiation while vibrating, and you can get even cleaning.

Company Profile

Skymen Cleaning Equipment Shenzhen Co. Ltd., that has worked on ultrasonic cleaner for more than 13 years.Our ultrasonic products fully range from mini household ultrasonic cleaner, benchtop stainless steel small ultrasonic cleaner, and industrial large tank ultrasonic cleaner as well as Immersible ultrasonic transducer system.Our company devote to research and development, with strong engineer teams.Otherwise, we accept customer's idea and want to develop new products together.

Industrial Ultrasonic Cleaner 7280L Capacity 40kHz/28kHz Frequency

FAQ

How about after sales services?
12 months warranty for SKYMEN ultrasonic cleaner. Any technical problem during warranty time, free replacement parts will be sent to your door. And technical support is also available after 1 year.
What are advantages of ultrasound over traditional cleaning methods?
1).minimizes the use of manual labor
2).makes cleaning and degreasing without the use of organic solvents
3).reaches every area of product and remove all types of dirt
4).shorten processes such as extraction, dispersion, purification, and chemical reactions.
5).eliminates costly mechanical and chemical cleaning of heat exchangers
Will ultrasonic cleaning damage item's parts?
Ultrasonic cleaning is considered as safe cleaning way for most parts; In some cases, it is necessary to observe carefully. The effect of thousands of implosions per second is very powerful, and the cleaning process is safe.
